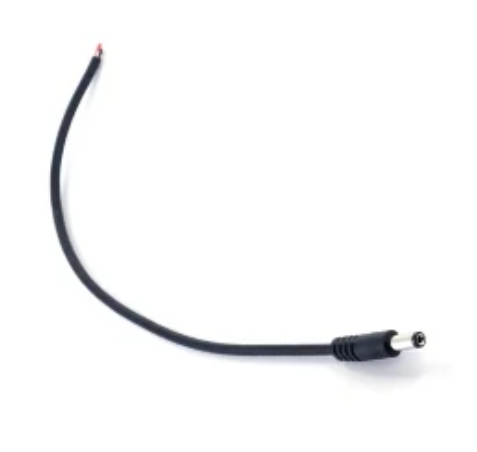

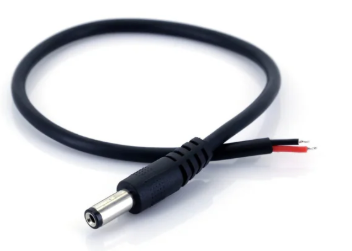

DC 5.5×2.1mm Power Jack Connector Cable Set – Male & Female Barrel Plug with Wire
This DC Power Jack Cable Set includes one Male and one Female 5.5mm x 2.1mm barrel connector with attached wires, perfect for powering low-voltage electronic devices. Ideal for CCTV systems, Arduino, routers, LED strips, and other DIY projects, these connectors help connect DC wall adapters to boards or devices without built-in jacks.
Each cable features a 2-core wire (Red = Positive, Black/White = Negative) and ensures quick, solder-free connections for safe and efficient power delivery. The product is lightweight, easy to install, and designed for short-distance, low-voltage power applications.
Specifications:
-
Connector Type: 5.5mm (Outer) × 2.1mm (Inner)
-
Included: 1 × Male Connector with Wire, 1 × Female Connector with Wire
-
Material: PVC
-
Voltage Range: 3.3V – 24V
-
Current Rating: Up to 2A
-
Wire Type: 2-core (Red = +, Black/White = -)
-
Length: ~30 cm
-
Weight: 5g each
-
Application: CCTV, LED lighting, development boards, routers, and power extensions
-
Installation: Quick connect, no soldering required
Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
