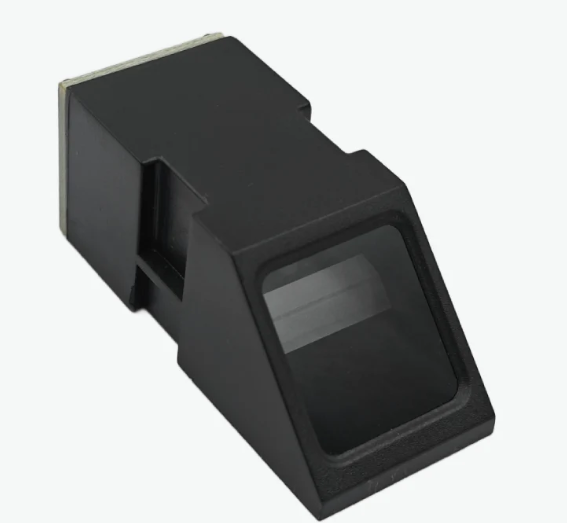

The AS608 Optical Fingerprint Sensor Module is a compact and reliable biometric sensor designed for fingerprint recognition and storage applications. Utilizing optical sensing technology, the AS608 module offers precise and secure fingerprint capture with fast matching and high accuracy. It is ideal for use in security systems, access control, attendance systems, and embedded electronics projects requiring user identification and authentication.With built-in image processing, storage capacity for fingerprints, and a UART interface, the module is easy to integrate with microcontrollers like Arduino, Raspberry Pi, or STM32. Its onboard DSP handles fingerprint image capture, feature extraction, and matching independently, making it ideal for low-power and resource-constrained applications.
Features of AS608 Optical Fingerprint Sensor Module:
- Optical sensing technology for accurate and secure fingerprint capture

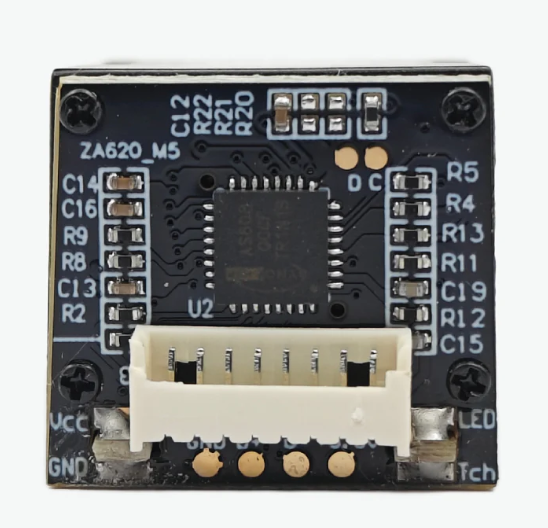

- Built-in DSP chip for fingerprint processing and storage
- Supports fingerprint registration, matching, and searching
- UART (Serial) communication interface for easy integration
- Compact design for space-limited applications
- Suitable for Arduino, Raspberry Pi, and other microcontrollers
Specifications of AS608 Optical Fingerprint Sensor Module:
- Model: AS608
- Operating Voltage: DC 3.3V – 6V
- Communication Interface: UART (TTL level)
- Storage Capacity: Up to 162 fingerprints
- Image Resolution: 500 DPI
- Matching Speed: < 1 second
- False Acceptance Rate (FAR): < 0.001%
- False Rejection Rate (FRR): < 0.1%

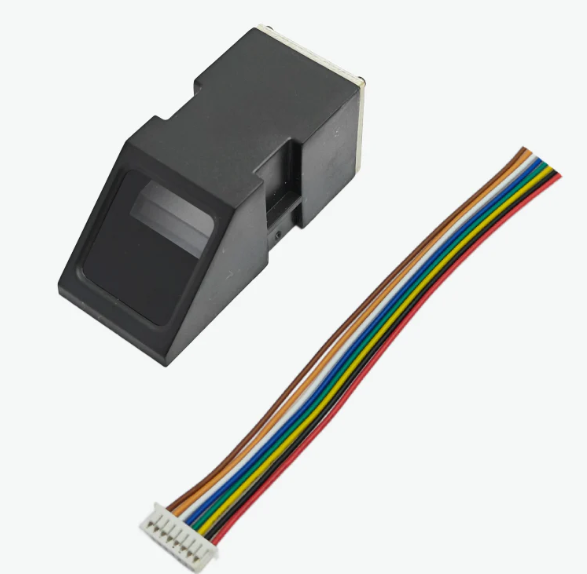

Package Includes:
1 × AS608 Optical Fingerprint Sensor Module

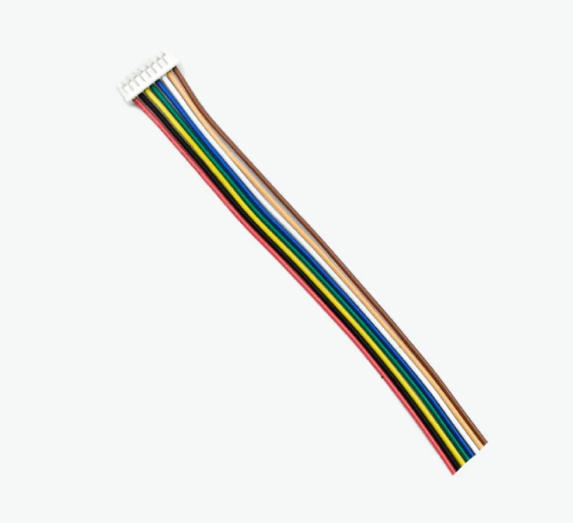

1 × Connection Cable
