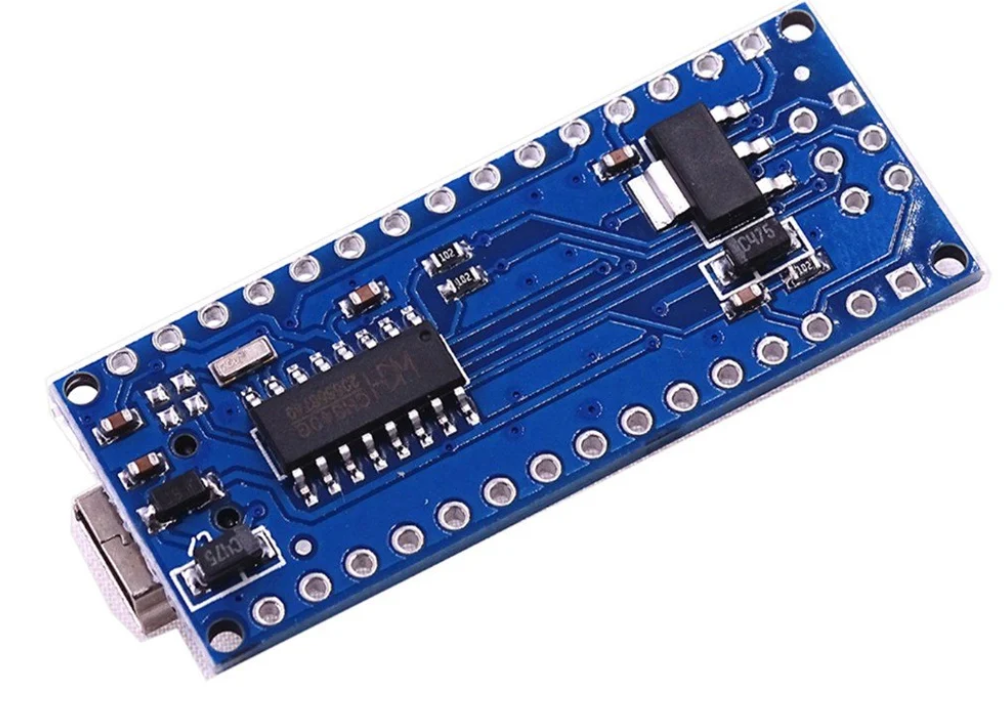

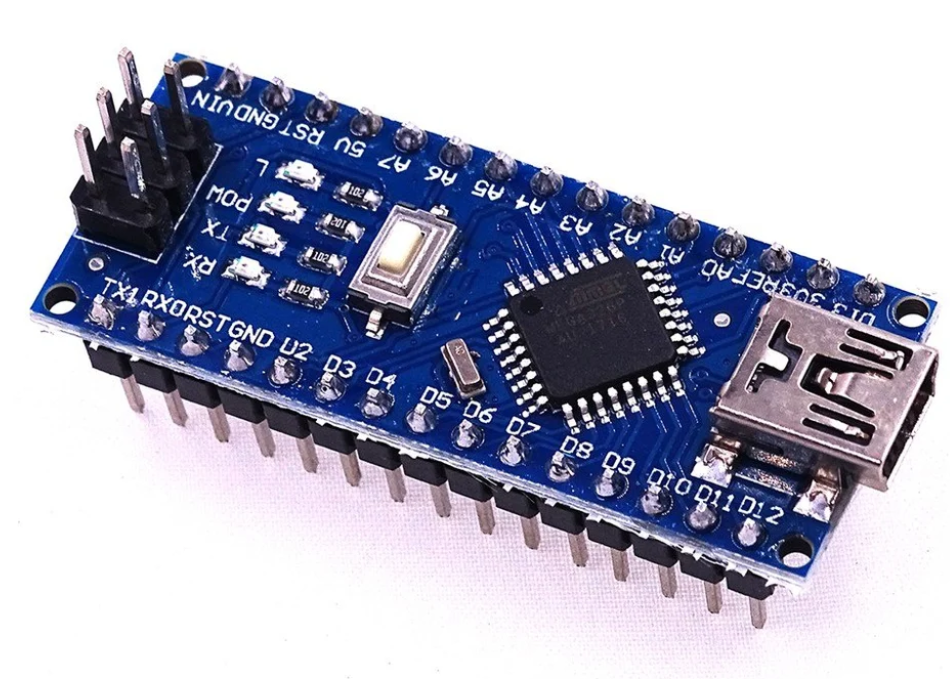

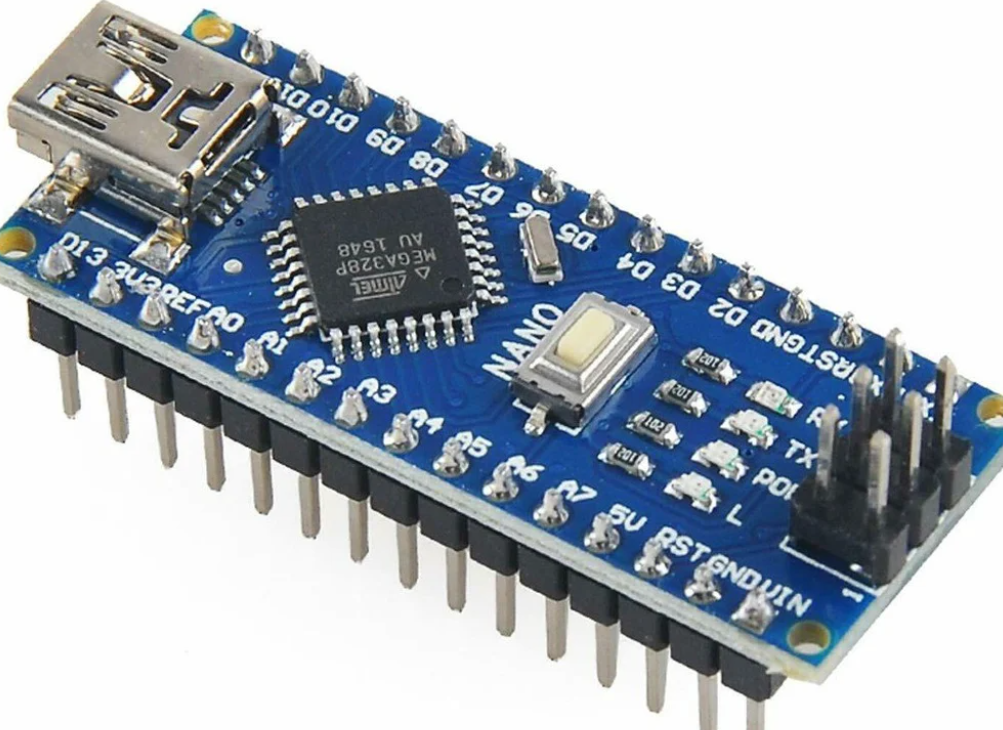

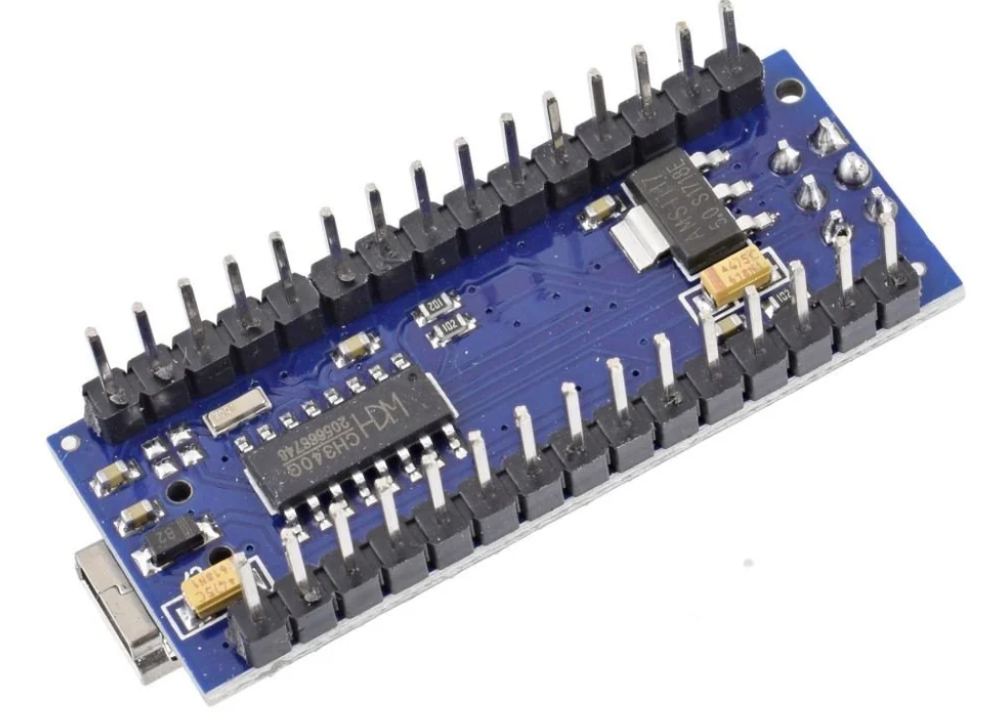

The Nano R3 CH340 Chip Development Board is a compact and cost-effective microcontroller board, fully compatible with Arduino IDE and libraries. Built on the ATmega328P microcontroller and featuring the CH340 USB-to-serial chip, this board provides reliable communication and easy programming.
This version comes pre-soldered with headers, making it ready for immediate prototyping and breadboard use. It does not include a USB cable, keeping the package lightweight and budget-friendly.
Key Features:
-
Microcontroller: ATmega328P
-
USB Chipset: CH340 (stable USB-to-serial communication)
-
Form Factor: Nano R3, compact size ideal for embedded projects
-
Pre-Soldered Headers: Ready to plug into breadboards or connect wires
-
I/O Pins: 14 Digital pins (6 PWM), 8 Analog inputs
-
Operating Voltage: 5V
-
Clock Speed: 16 MHz
-
Flash Memory: 32 KB (with 2 KB used by bootloader)
-
SRAM: 2 KB
-
EEPROM: 1 KB
-
USB Connection: Mini USB port (cable not included)
Applications:
-
DIY electronics and Arduino projects
-
Robotics and sensor integration
-
Home automation prototypes
-
IoT and embedded systems development
-
Educational use for learning microcontrollers
