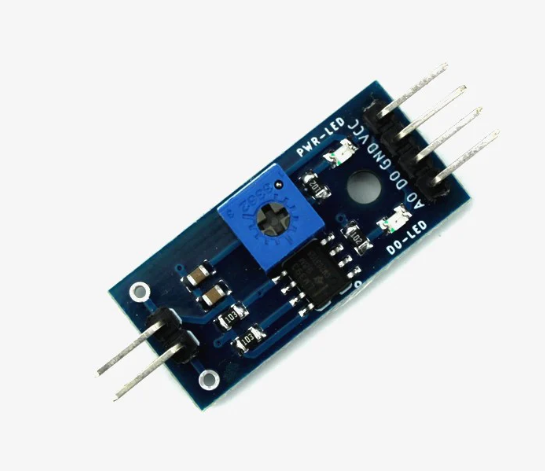

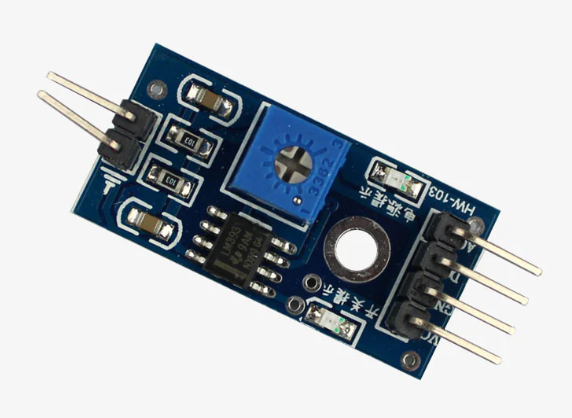

Raindrop Sensor is a tool used for sensing rain. It consists of two modules, a rain board that detects the rain and a control module, which compares the analog value, and converts it to a digital value. The Rain Drop Sensor Module can be powered with +5V and has both digital and analog output pins. The digital pin will remain high when there is no rainfall or water present on the detection plate. When a slight amount of water is detected the digital pin will go low and remain there until the water is cleared. The Raindrops module also has an LED to indicate the output status of the sensor and a potentiometer to control the sensitivity of the sensor. The analog pin outputs analog voltage based on the amount of water present on the detection plate. It is used in automation tasks like windshield wipers, automatic window closing in case of thunderstorm or adjust room temperature, in agriculture sector to plan the watering of the crops etc.
Specifications
- Working voltage 5V
- Output format: Digital switching output (0 and 1), and analog voltage output AO
- Potentiometer adjust the sensitivity
- Uses a wide voltage LM393 comparator
- Comparator output signal clean waveform is good, driving ability, over 15mA
- Anti-oxidation, anti-conductivity, with long use time
- With bolt holes for easy installation
Product Description
To connect this sensor module to any Microcontroller like Arduino or PIC , you need to power this device by 5V pin and GND pin. Connect the DO pin of the module to any Digital I/O pin of the controller.

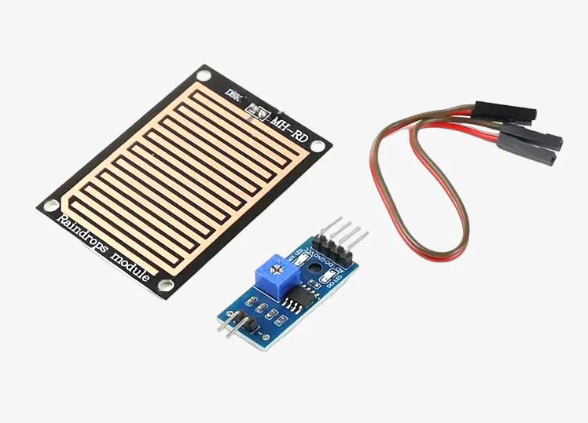

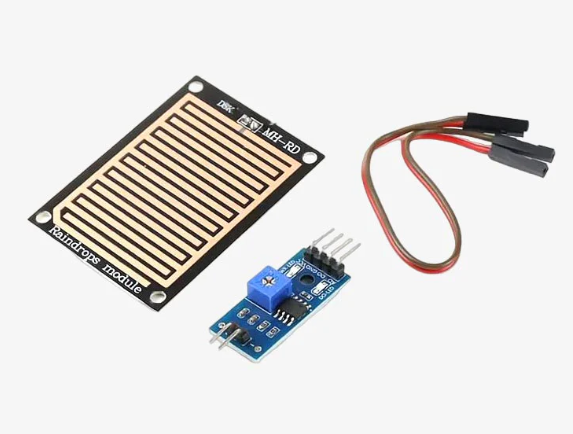

Package Contents
1×Rain Detection Board
1×Control Module
2×Female-Female Jumper Wires
